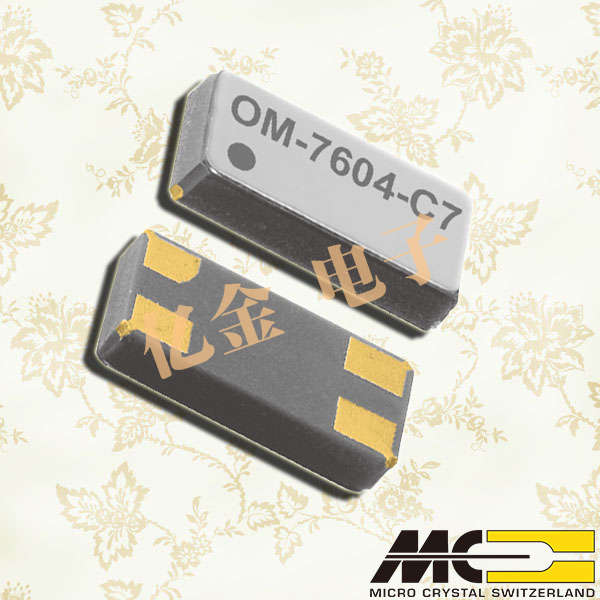

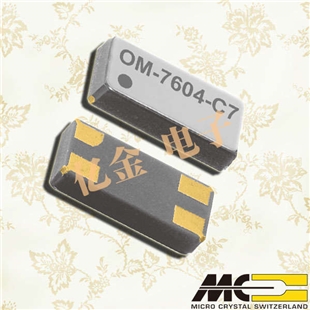

更多>>OM-7604-C7-32.768kHz-20PPM-TA-QC,無線通信模塊應用,Micro晶振
- 頻率：32.768kHz
- 尺寸：3215
- 應 用： OM-7604-C7-32.768kHz-20PPM-TA-QC,無線通信模塊應用,Micro晶振,低功耗設計可有效延長模塊電池續航時間,尤其適配藍牙,ZigBee,LoRa等無線通信場景,避免因時鐘組件功耗過高導致的設備頻繁充電問題.
-
.png)
.png)
OM-7604-C7-32.768kHz-20PPM-TA-QC,無線通信模塊應用,Micro晶振
OM-7604-C7-32.768kHz-20PPM-TA-QC作為一款高性價比Micro晶振,頻率精準鎖定32.768kHz,是電子設備低功耗時鐘系統的核心組件.頻率偏差嚴格控制在±20PPM以內,確保時鐘信號的高穩定性,可為設備提供精準的時間基準.其適配的TA(溫度補償)特性,進一步優化了不同溫度下的頻率穩定性,為無線通信模塊,智能穿戴設備等對時鐘精度與功耗有雙重要求的產品提供可靠支撐.
.png)
.png)
OM-7604-C7-32.768kHz-20PPM-TA-QC,無線通信模塊應用,Micro晶振
| 原廠型號 Originalmodel： | OM-7604-C7-32.768kHz-20PPM-TA-QC | 品牌brand： | Micro |
| Manufacturer品牌 | Micro | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | OM-7604-C7 | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.7mm |
| Frequency頻率 | 32.768kHz | Termination 腳位 | 4-pad |
| 輸出方式 Output： | CMOS輸出晶振 | PackageType 封裝類型 | 4-Smd |
| Voltage-Supply電壓 | 1.2V ~ 5.5V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±20ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3215mm | 最小包裝數MPQ： | 3000 |
.png)
.png)

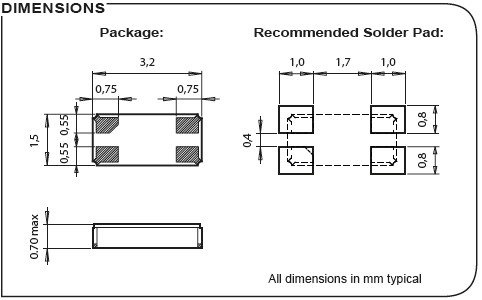

OM-7604-C7-32.768kHz-20PPM-TA-QC,無線通信模塊應用,Micro晶振
.JPG)
OM-7604-C7-32.768kHz-20PPM-TA-QC,無線通信模塊應用,Micro晶振
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 100 kHz | 100 PPM |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| 202684-MC03 | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| 202273-EA00 | Micro微晶晶振 | Clock Oscillators | 128 MHz | |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro微晶晶振 | Clock Oscillators | 32.768 kHz | |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
